Description

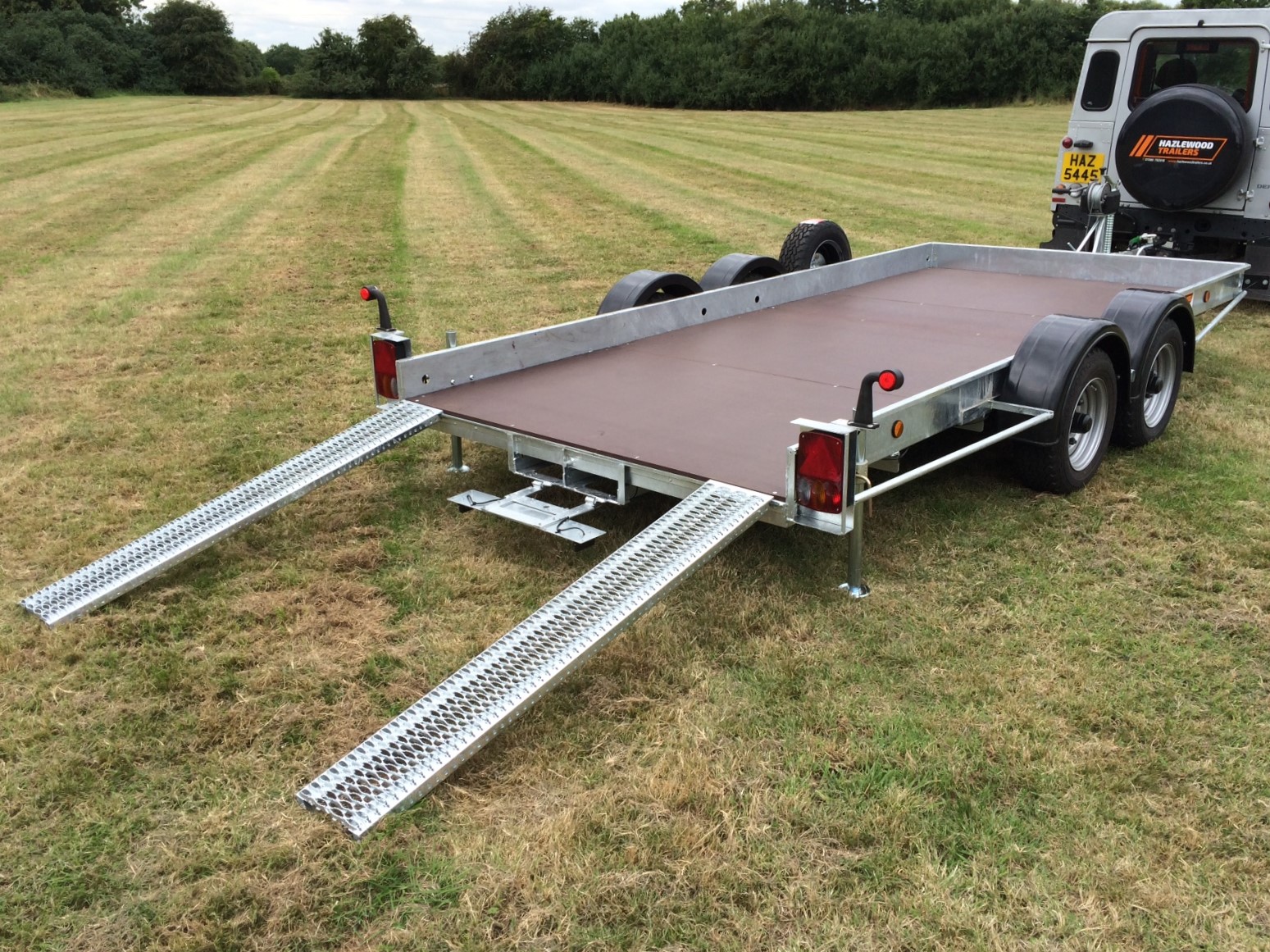

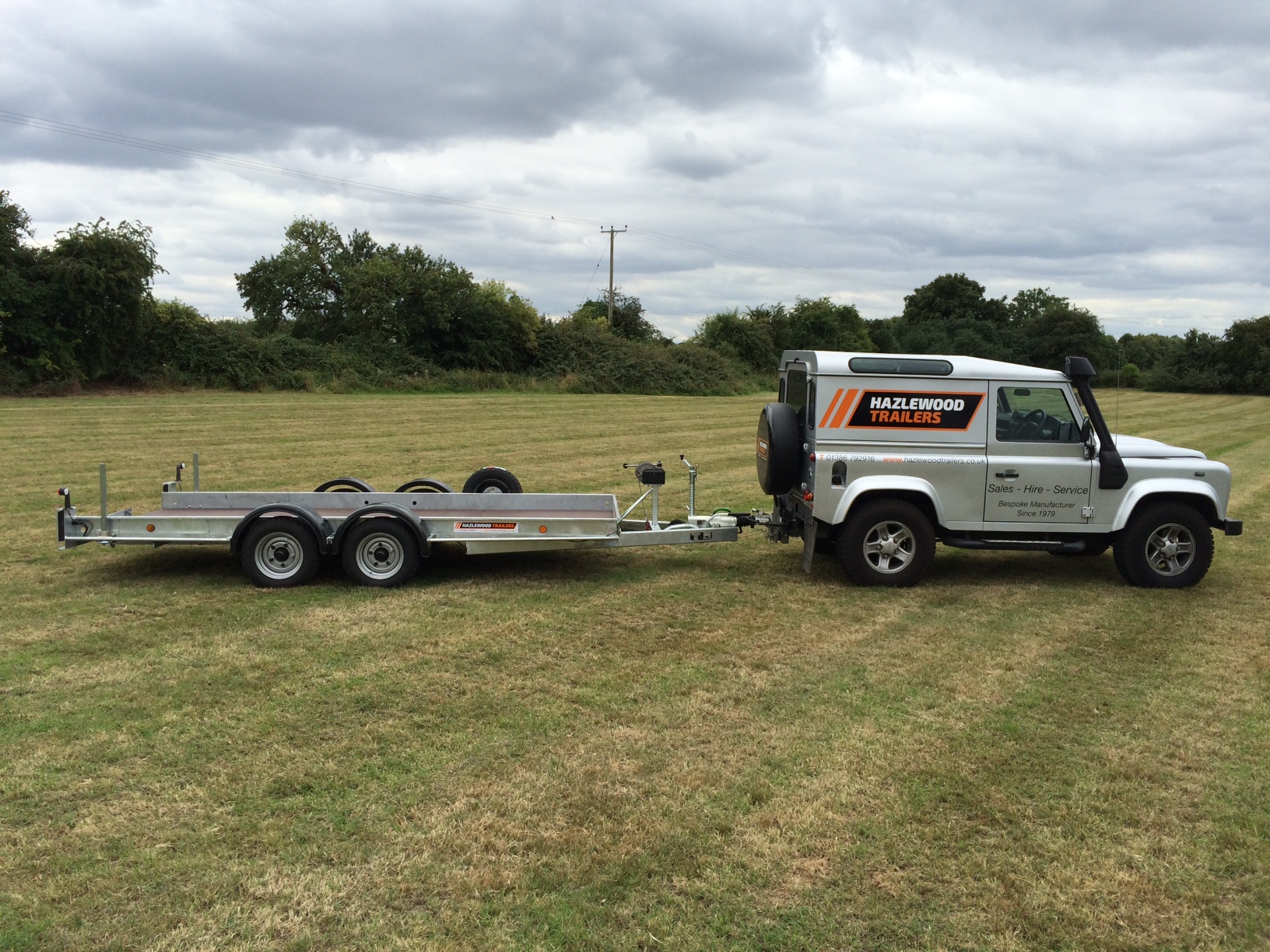

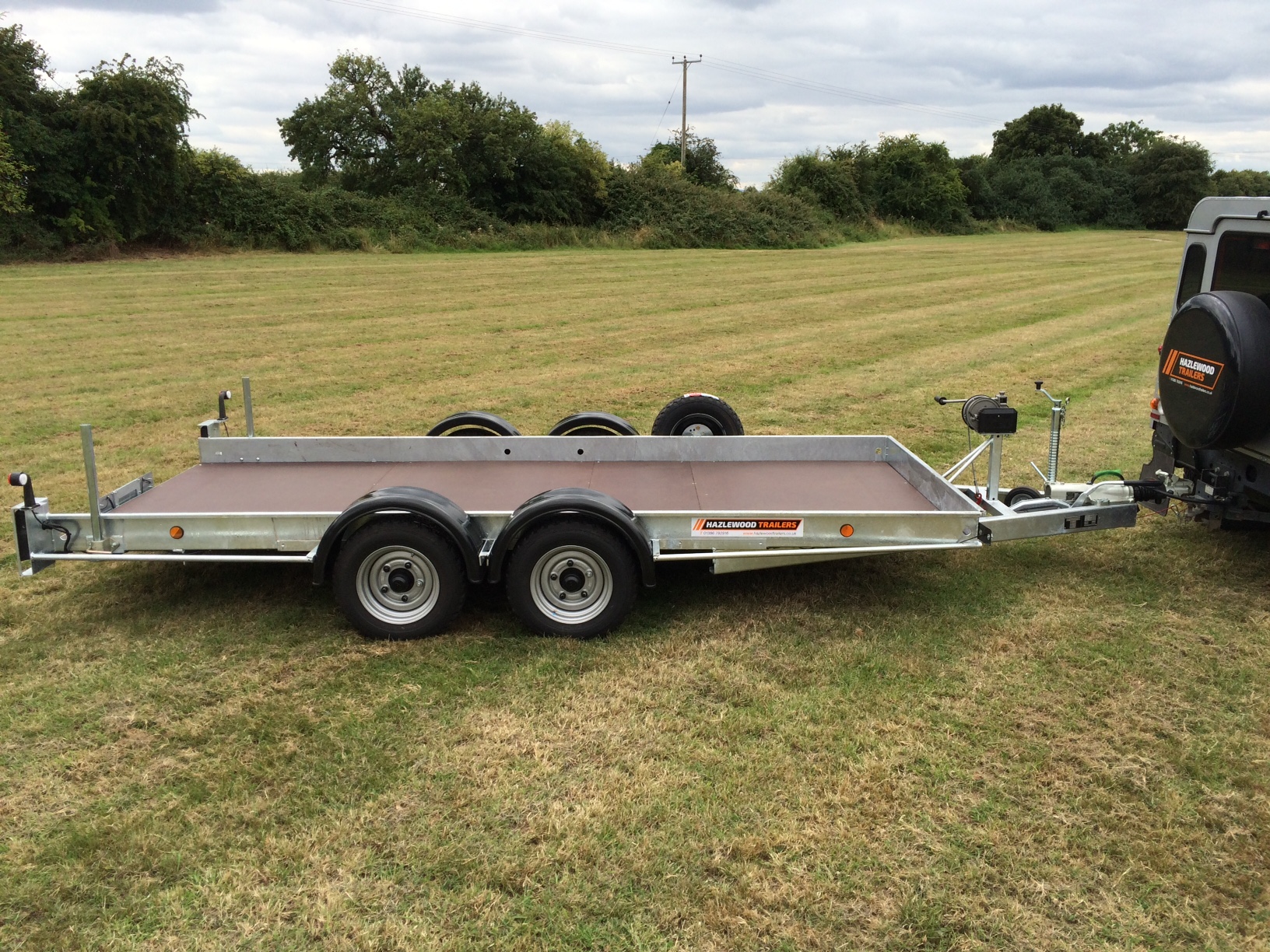

Model 3500C, 14′ x 6′, shown with optional spare wheel, and 185/70R13 wheels and tyres.
| SIZE OPTIONS | 12′ x 6′ – (366 x 182) approx. / 14′ x 6’1″ – (427 x 185) approx. / 16′ x 6’1″ – (487 x 185) approx. |
| HEIGHT OF SIDES | 7″ (18) approx. |
| GROSS WEIGHT | 3500 KG |
| UNLADEN WEIGHT | (12′) 670 KG approx. / (14′) 720 KG approx. / (16′) 750 KG approx. |
| PAYLOAD | (12′) 2830 KG approx. / (14′) 2780 KG approx. / (16′) 2750 KG approx. |
| WHEEL SIZE | 155/70R12 commercial |
| RAMPS | Twin 5′ steel stowed at rear |

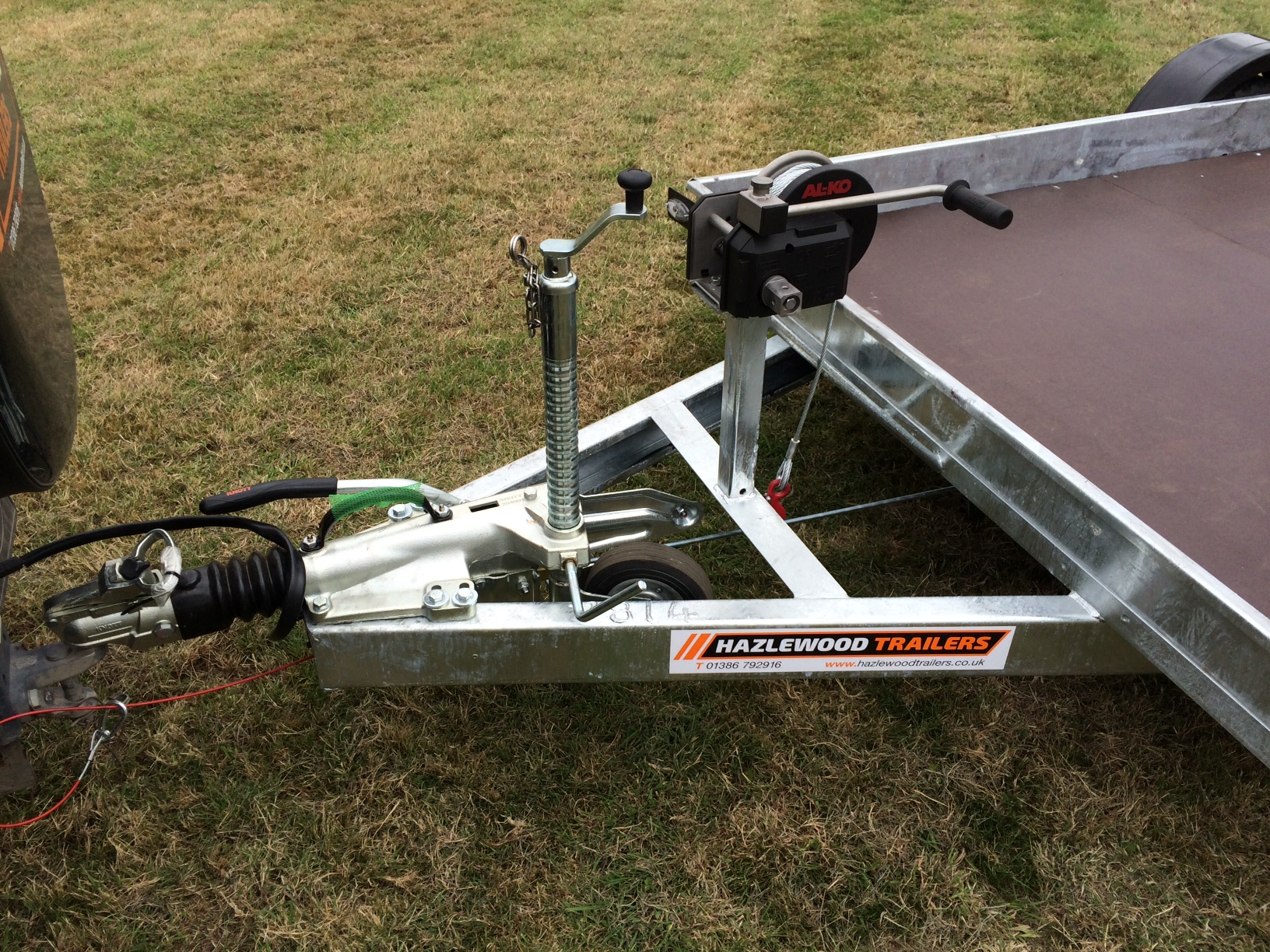

| OPTIONAL EXTRAS | Hydraulic pre-tilt (in lieu of ramps); Spare wheel on mounting bracket, Safety winch, Load securing straps. |
